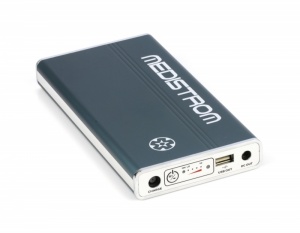

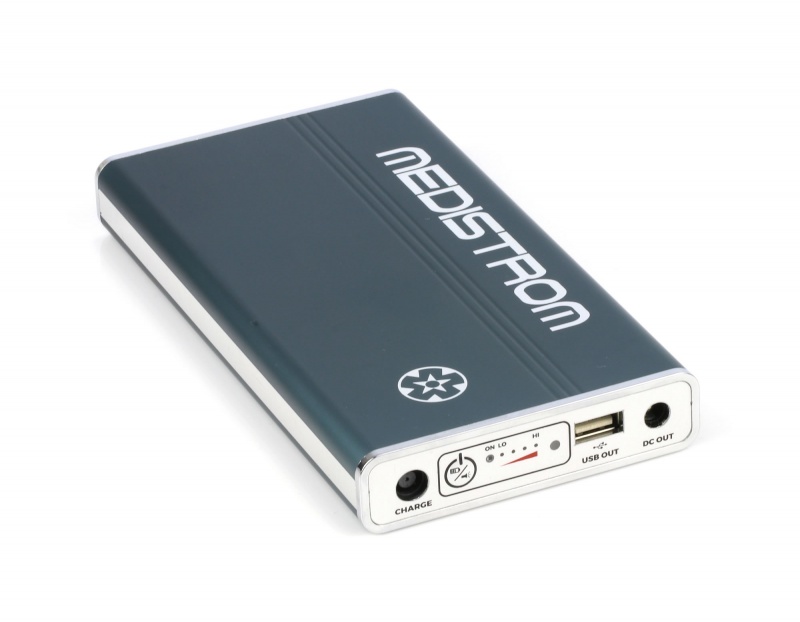

CPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machines
  Zoom
CPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machinesCPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machinesCPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machinesCPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machinesCPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machinesCPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machines

CPAP Battery - Flight-approved with back-up UPS power - Pilot-12 or Pilot-24 for Philips, Lowenstein, Resmed & Other machines

PRICE:  £325.00(plus 20% VAT if applicable)
Most products qualify for Zero Rate VAT Relief which will be shown at checkout if applicable.
Please read the VAT Declaration below.


Part Number:  P12MPLBP1
Brand:  Medistrom

50W Solar Panel Charger for Medistrom Pilot-12 Lite & Pilot-24 Lite CPAP Battery50W Solar Panel Charger for Medistrom Pilot-12 Lite & Pilot-24 Lite CPAP Battery
12V Car Charger for Medistrom Pilot-12 and Pilot 24 Lite Batteries12V Car Charger for Medistrom Pilot-12 and Pilot 24 Lite Batteries
Compatible CPAP Cable Kits for Medistrom Pilot-12 and Pilot 24 Lite BatteriesCompatible CPAP Cable Kits for Medistrom Pilot-12 and Pilot 24 Lite Batteries

Medistrom

These are the very latest versions (as of 2022) of the popular Pilot-12 Lite and Pilot-24 Lite CPAP Batteries by Medistrom that not only have back-up UPS battery power for any unexpected power cuts, they are Flight-Approved batteries so can be used on long-haul flights and work with several different brands of CPAP machines.

Please read the main listing carefully as it is important to get the correct battery for the correct CPAP machine and some many require extra cables.


Hope2Sleep Charity's Description and Observations:-

These are the latest 2022 version of the Medistrom Pilot-24 Lite and Pilot-12 Lite universal CPAP Batteries and it is very important to get the correct battery as the Pilot-24 Lite is for CPAP machines that run on 24 volts and the Pilot-12 Lite is for CPAP machines that are run on 12 volts.

Some CPAP manufacturers have their own batteries, but it's worth considering that if you were to ever change to a different manufacturer's CPAP machine, then the specific battery would not work with another brand of CPAP machine. This is why we have chosen to supply this Medistrom universal battery which works with a selection of different machines.

The main benefits of these Pilot-12 Lite and Pilot-24 Lite CPAP batteries are:-

  • UPS (uninterruptible power supply) - also known as back-up battery. This means that if the battery is connected to the CPAP machine when the CPAP is running on mains power, if there are any unexpected power cuts, the battery will automatically take over to power the CPAP so that there is no interruption to the running of the CPAP machine.

  • Flight-approved for using on long-haul flights and Medistrom also provide a downloadable Flight Travel Letter to take on flights.

  • USB Port for charging mobiles, cameras and tablets etc.

  • Built-in LED Torch (Flashlight) - very handy when camping!

  • Very lightweight at only 560g (1.3lbs).

  • Optional Solar Panels or 12V Car Charger (available separately) for charging the battery when there is no access to mains power.

  • 2-3 Hours Charging Time to full charge.

  • One Year Warranty and Free Manufacturer Support on condition the battery is fully charged before storage and at least EVERY 6 MONTHS thereafter.

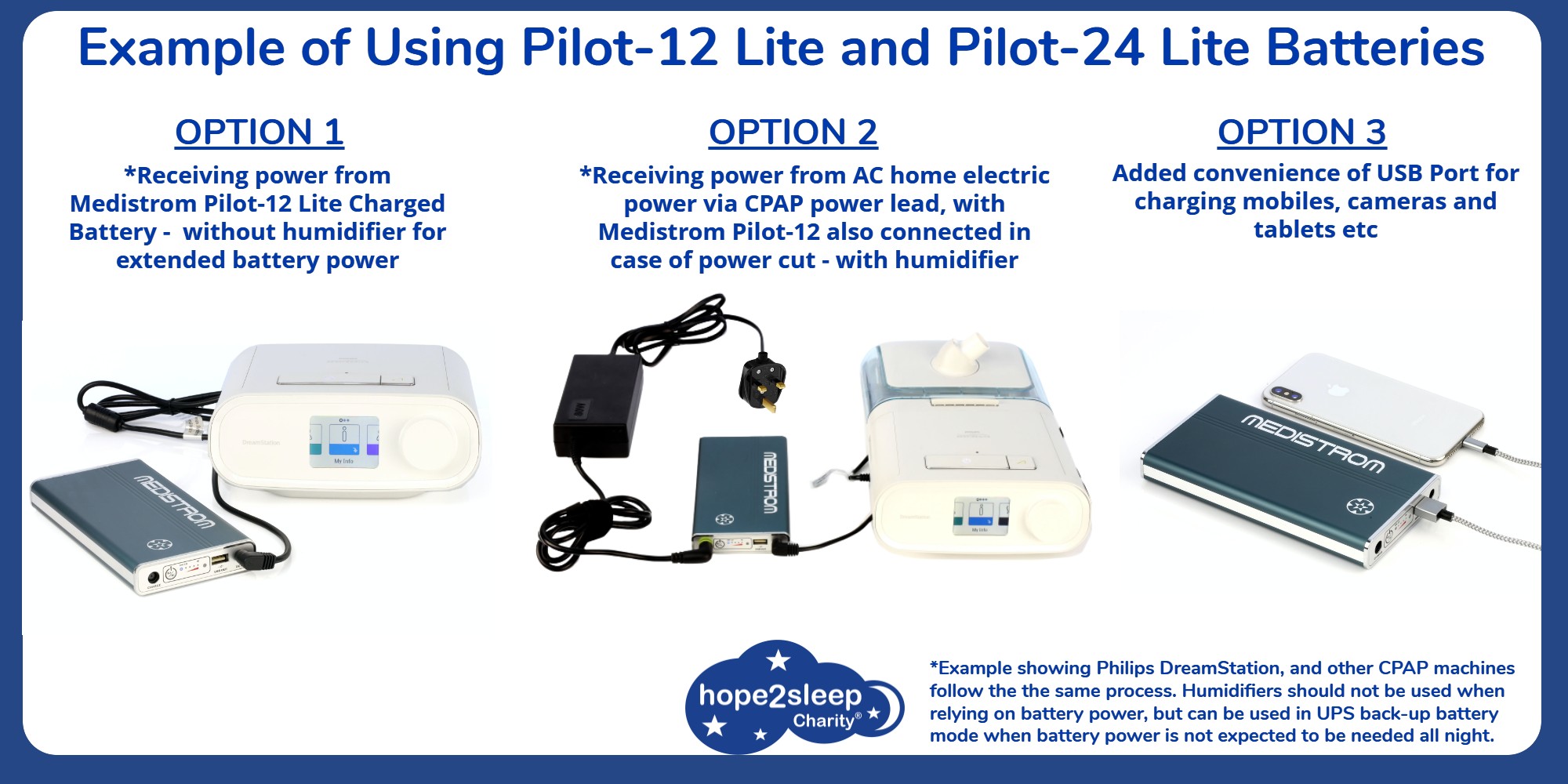

Medistrom Battery Usage Options

The length of power usage will very much depend on the pressure settings on each CPAP machine, whether fixed or automatic pressure, mask leaks, altitude etc, but on a fixed CPAP pressure of 10 cm with no humidifier or heated hose, the battery should last for a minimum of 8 hours and with less demanding configurations, 2 nights usage is possible.

A humidifier or heated hose is NOT recommended with this type of battery as it will shorten the battery usage time by around 3-4 hours!

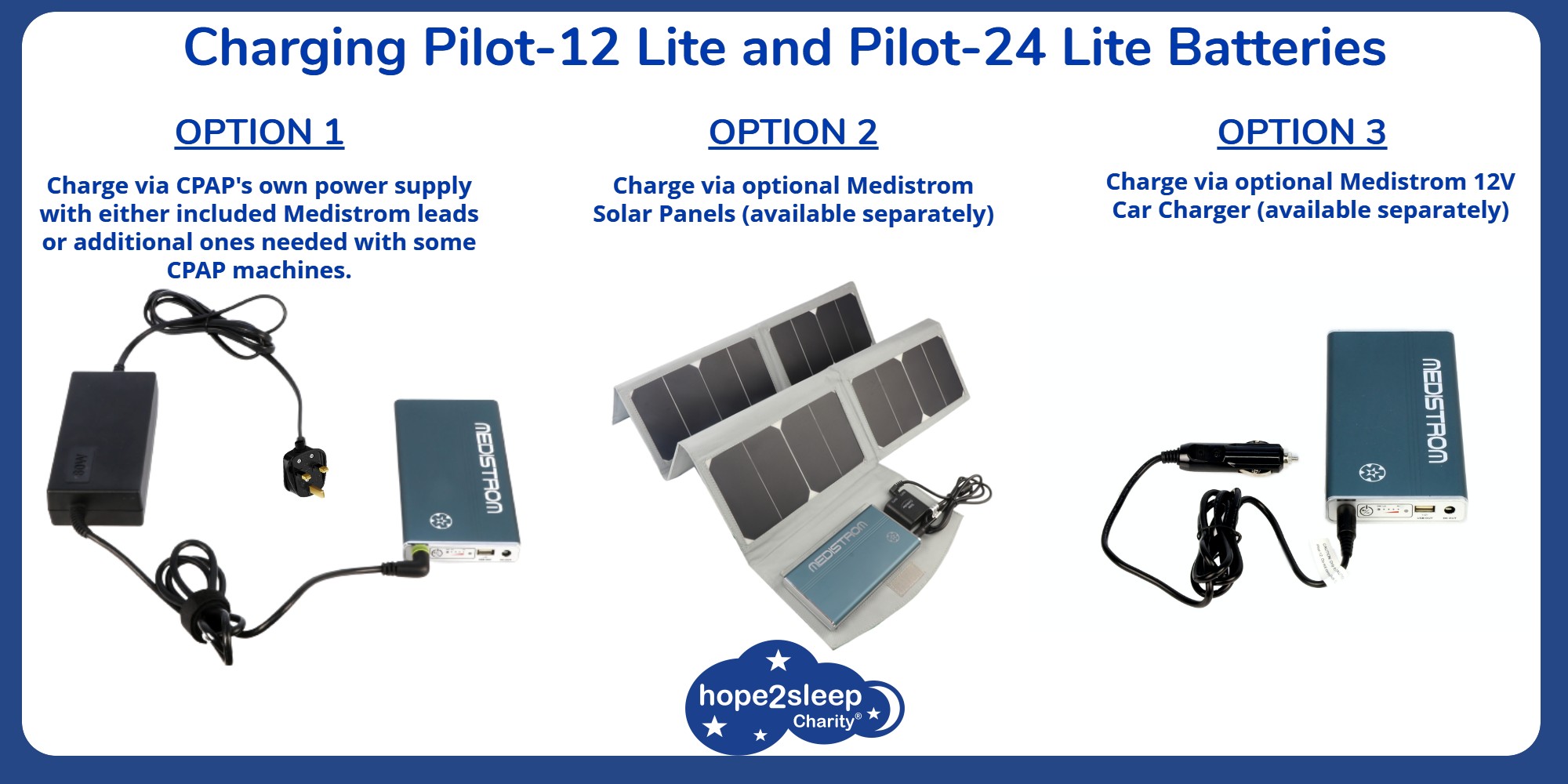

The batteries can easily be recharged in one of three ways:-

  1. Using the CPAP machine's power supply when AC power is available which takes approx 2-3 hours (except the AirMini which takes 7-9 hours).

  2. Optional 12V Car Charger (available separately) which takes approx 3-5 hours.

  3. Optional Medistrom 50W Solar Panels (available separately) which takes 7-9 hours in direct sunlight.

Charging Options Medistrom Battery

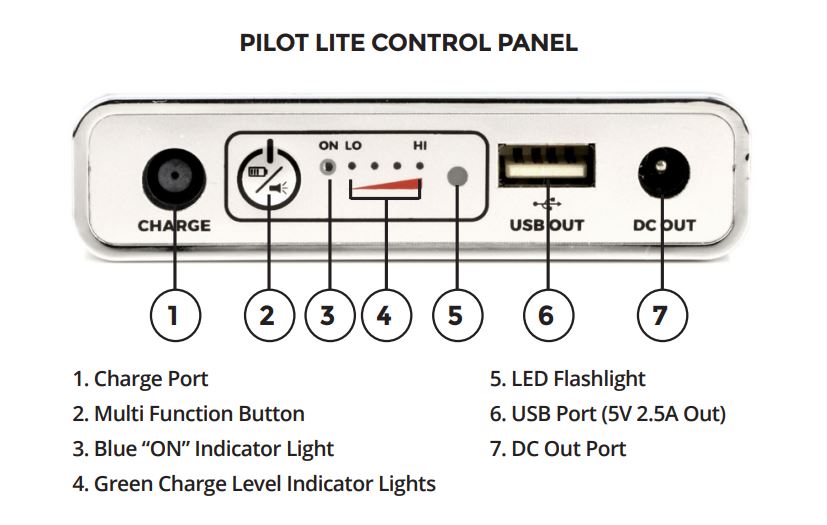

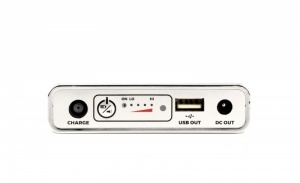

Control Panel Medistrom


Pilot-12 Lite CPAP Battery

Compatible with the following CPAP machines:-

  • Philips Respironics DreamStation and DreamStation 2 (but NOT the DreamStation Go travel machine which needs the Pilot-24 Lite below)

  • Philips Respironics System One REMstar 60-series

  • DeVilbiss SleepCube and DeVilbiss Blue (called IntelliPAP I and IntelliPAP II in USA)

  • Breas (HDM) Z1 and Z2 Travel Machines

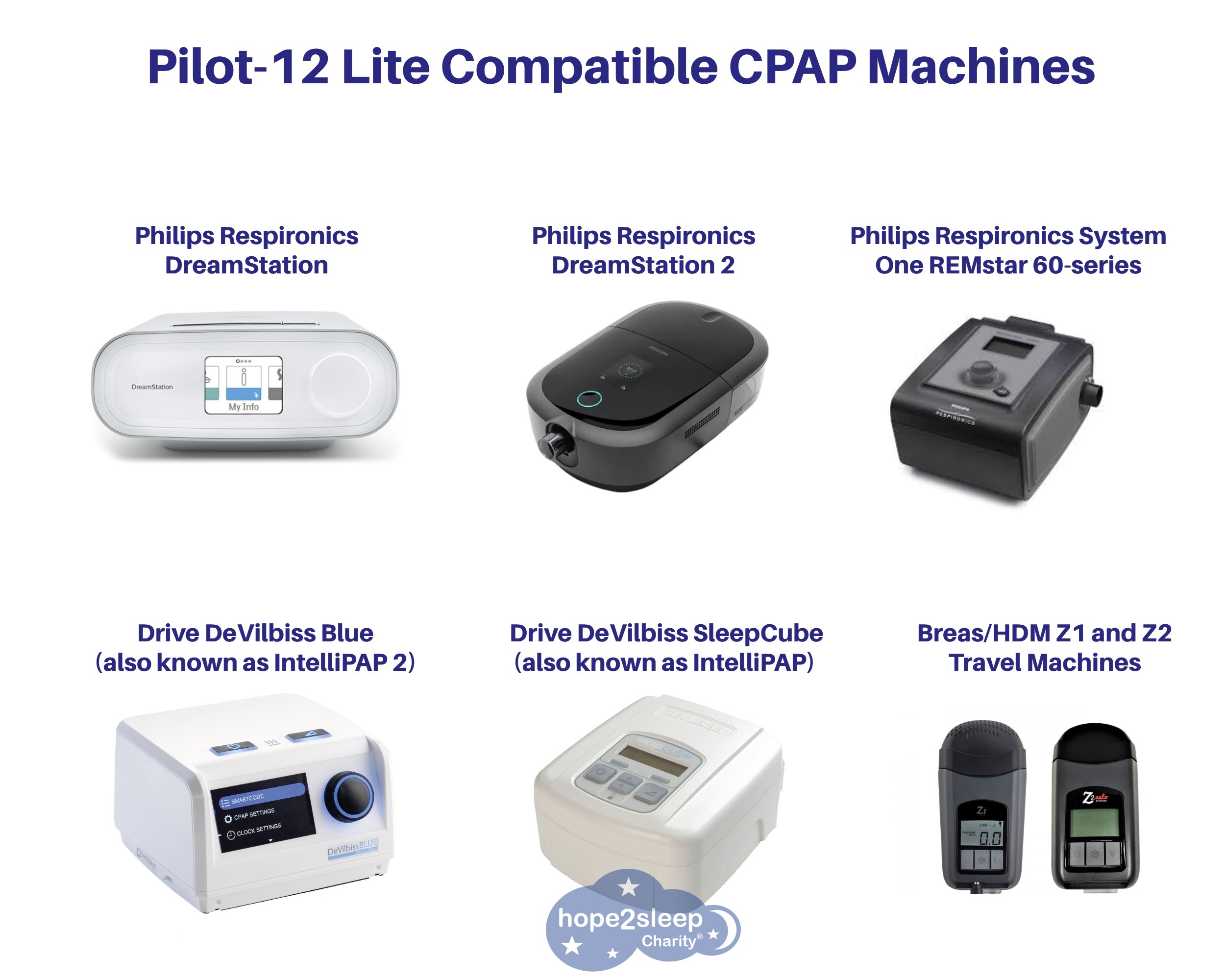

Pilot-12 Lite Compatibility



Pilot-24 Lite CPAP Battery

Compatible with the following CPAP machines:-

  • Lowenstein Prisma Soft, Prisma Smart, Prisma SoftPlus, Prisma SmartPlus, Prisma SoftMax, Prisma SmartMax

  • Philips Respironics DreamStation Go (Travel Machine)

  • ResMed AirSense 10-series

  • Resmed Airsense 11-series

  • ResMed AirMini (Travel Machine)

  • ResMed S9

  • Sefam S.Box

  • Apex Medical iCH

  • BMC/3B Medical Luna L7000/L8000

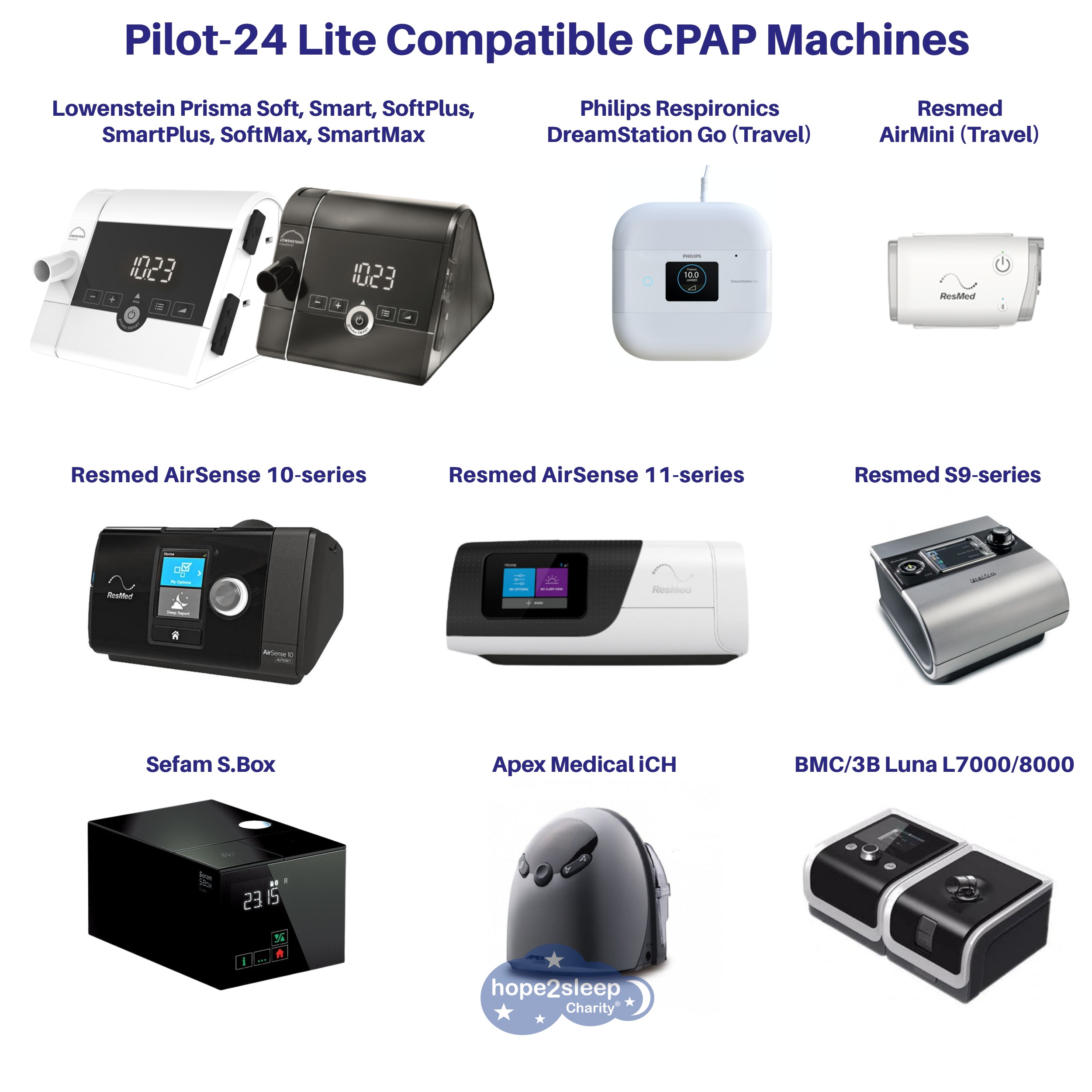

Pilot-24 Compatibility

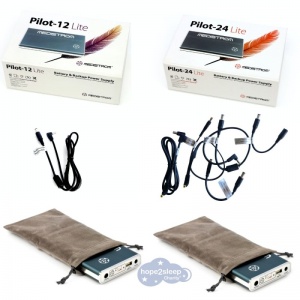

Box Contents and Specification:-

MEDISTROM PILOT-12 LITE:

  • Pilot-12 Lite Battery
  • Output Cable for Philips Respironics DreamStation/System One S60

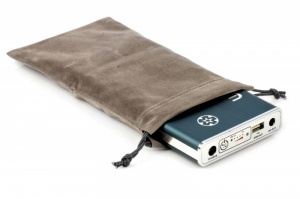

  • Fabric Carrying Case
  • Product Manual (English, French, German, Spanish)
  • Quick Start Guide (English, French, German, Spanish)

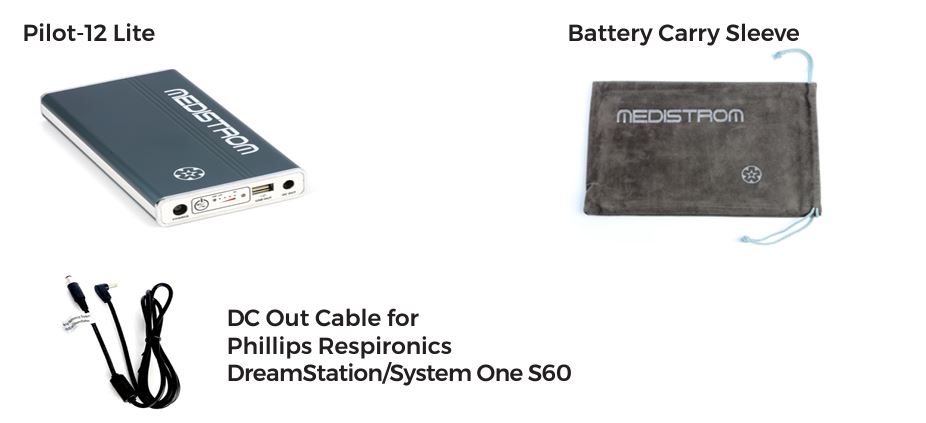

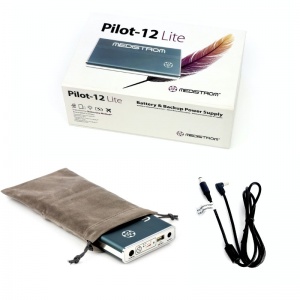

Pilot-12 Box Contents

Capacity 95Wh
Cell Type: Industrial grade genuine LG rechargeable lithium ion cells
Rated Input: 12V, 60W (NORMAL), 80W (MAX)
Rated Output: DC 12V, 6.67A
USB Out: 5V, 2.5A
Life Span: Over 500 full charge/discharge cycles
Case: Aluminium
Dimensions: 17cm x 9cm x 2cm (6.7" x 3.5" x 0.8")
Weight: 560g (1.3lbs)
Power Gauge: 4 stage Charge Level Indicator Lights
Recharge time: 2-3 hours minimum with included cables (charging via other compatible adapters may take longer).























MEDISTROM PILOT-24 LITE:

  • Pilot-24 Lite Battery
  • DC Out Cable for Lowenstein Prisma Smart/Soft series
  • Short Charging Adapter Cable for Lowenstein Prisma Smart/Soft series
  • Output Cable for ResMed AirSense 10
  • Output Cable for ResMed AirMini
  • Short Charging adapter for ResMed AirMini
  • Fabric Carrying Case
  • Product Manual (English, French, German, Spanish)
  • Quick Start Guide (English, French, German, Spanish)

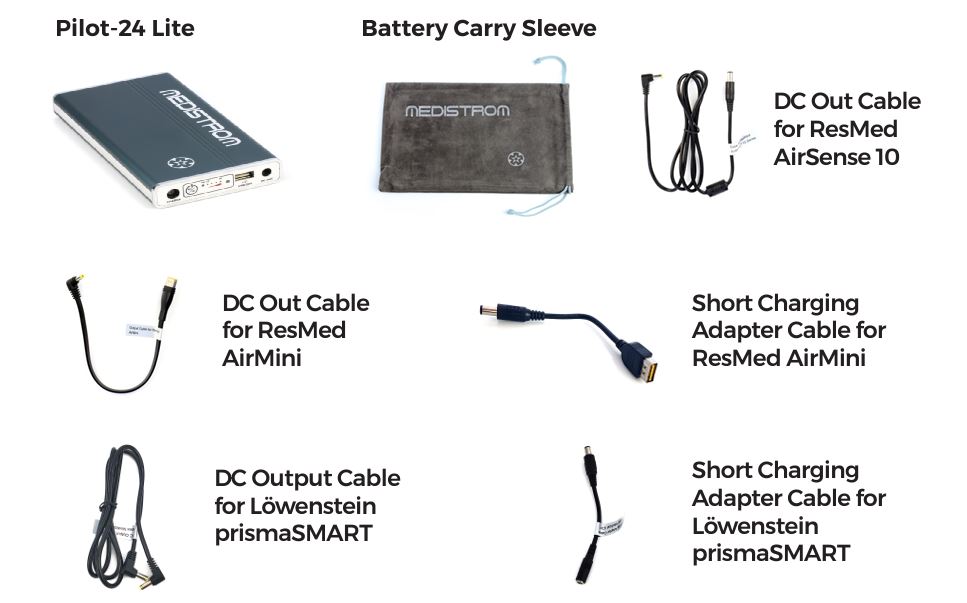

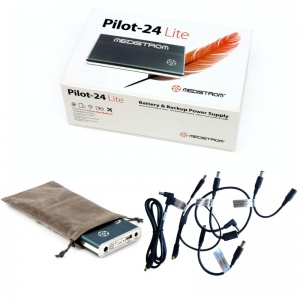

Pilot-24 Box Contents

Capacity 95Wh
Cell Type: Industrial grade genuine LG rechargeable lithium ion cells
Rated Input: 24V, 60W (NORMAL), 90W (MAX)
Rated Output: DC 24V, 3.75A
USB Out: 5V, 2.5A
Life Span: Over 500 full charge/discharge cycles
Case: Aluminium
Dimensions: 17cm x 9cm x 2cm (6.7" x 3.5" x 0.8")
Weight: 560g (1.3lbs)
Power Gauge: 4 stage Charge Level Indicator Lights
Recharge time: 2-3 hours minimum with included cables (charging via other compatible adapters may take longer).  Charging with the ResMed AirMini AC adapter takes approximately 7-9 hours but shorter charging time can be achieved with the Medistrom AC optional power adapter (P24ACCACA)



























VERY IMPORTANT TO READ BEFORE PURCHASE

Due to the fact the Medistrom batteries are universal to be able work with several different CPAP machines, it is important to purchase the correct battery (Pilot-12 Lite or Pilot-12 Lite) and to check whether any extra cables are required for your CPAP machine. We have done our best in creating the following table to help make your purchase as easy as possible, but if in doubt please contact us before making your purchase:-

CPAP MACHINE

MEDISTROM BATTERY OPTION

EXTRA CABLE KIT REQUIRED?

OPTIONAL ACCESSORIES
AVAILABLE SEPARATELY

Philips Respironics DreamStation (White) Pilot-12 Lite No Extras Needed

Solar Charger
Car Charger

Philips Respironics DreamStation2 (Brown) Pilot-12 Lite P12DS2DOC DreamStation2 Cable Solar Charger
Car Charger
Philips Respironics DreamStation Go (White Travel Machine) Pilot-24 Lite P24PDGPLK DreamStation Go/Luna Kit (this includes an AC power adapter with 2-pin USA plug so will also need a 3-pin UK adapter for use in UK or compatible adapter for other countries) Solar Charger
Car Charger
Philips Respironics System One REMstar 60-series (Black/Grey) Pilot-12 Lite No Extras Needed Solar Charger
Car Charger
Lowenstein Prisma Soft, Prisma Smart, Prisma SoftPlus, Prisma SmartPlus, Prisma SoftMax, Prisma SmartMax (White or Black) Pilot-24 Lite No Extras Needed Solar Charger
Car Charger
Resmed AirSense 10 Pilot-24 Lite No Extras Needed Solar Charger
Car Charger
Resmed AirMini (Travel Machine) Pilot-24 Lite No Extras Needed for simply powering from the Pilot-24 battery, but if wanting to use the battery with the AirMini as UPS back-up battery power then either an AirSense 10 power supply will be needed or the Medistrom AC Power Adapter (P24ACCACA) as mentioned in the next column as an 'optional accessory.' Solar Charger
Car Charger
Medistrom AC Power Adapter (P24ACCACA) is available for quicker charging or to use as UPS back-up power, but this comes with 2-pin USA plug so you will also need a 3-pin UK adapter for use in UK or compatible adapter for other countries.
Resmed AirSense 11 Pilot-24 Lite P24R11PLK AirSense 11 Kit Solar Charger
Car Charger
Resmed S9 Pilot-24 Lite P24R09PLK S9 Kit Solar Charger
Car Charger
Sefam S.Box Pilot-24 Lite         P24AMIPLK iCH/S.Box Kit Solar Charger
Car Charger
Drive DeVilbiss SleepCube
(IntelliPAP 1)
Pilot-12 Lite P12MXDPLK Mixed Kit for Drive DeVilbiss SleepCube/IntelliPAP and HDM/Breas Z1 and Z2 Solar Charger
Car Charger
Drive DeVilbiss Blue (IntelliPAP 2) Pilot-12 Lite P12MXDPLK Mixed Kit for Drive DeVilbiss SleepCube/IntelliPAP and HDM/Breas Z1 and Z2 Solar Charger
Car Charger
Breas/HDM Z1 and Z2 (Travel Machines) Pilot-12 Lite P12MXDPLK Mixed Kit for Drive DeVilbiss SleepCube/IntelliPAP and HDM/Breas Z1 and Z2 Solar Charger
Car Charger
Apex Medical iCH Pilot-24 Lite  P24AMIPLK iCH/S.Box Kit Solar Charger
Car Charger
BMC/3B Medical Luna L7000/L8000 Pilot-24 Lite P24PDGPLK DreamStation Go/Luna Kit (this includes an AC power adapter with 2-pin USA plug so will also need a 3-pin UK adapter for use in UK or compatible adapter for other countries) Solar Charger
Car Charger



Other Important Information:-

  • These batteries are not suitable for powering non-invasive ventilators.

  • The batteries cannot be used with the Fisher & Paykel CPAP machines.

  • A humidifier or heated hose is NOT recommended with this type of battery as it will shorten the usage time by around 3-4 hours!

  • The batteries do not come with a power supply as they are designed to use the CPAP's own power cord with the addition of some included cables or extra cables which  may need purchasing. This is also to help with travel in cutting down on extra power supplies to pack.

Cautions:-

Caution-Medistrom

  • It is highly recommended that you use the battery at home before relying on the battery for any trips/holidays, to test the equipment is working correctly and that you have purchased all the correct accessories needed. This will also enable you to check how long the battery will last for your own configuration of CPAP therapy.

  • Fully charge your Pilot Lite before storage and at least EVERY 6 MONTHS thereafter. Failure to do this will void the warranty.

  • Make sure the battery is NOT connected to the CPAP machine when charging from the optional Car Charger or Solar Panels.

  • Keep the battery out of direct sunlight, and if charging using the solar panels, pop the battery underneath the canvas panels.

  • Keep the battery out of rain or snow.

  • Store the battery in a dark, cool and well-ventilated area with normal temperatures, and make sure the battery is switched off.




Click to download Quick Start Guide

Click to download Manual (there may be updates to this manual not in the printed one with the battery)

Click to download Travel Letter to take on flights



Helpful Information Video but do note that the included or additional accessories
may not be up to date as other CPAP machines are frequently added to the
compatibility for use with the Pilot-12 Lite and Pilot-24 Lite Batteries
